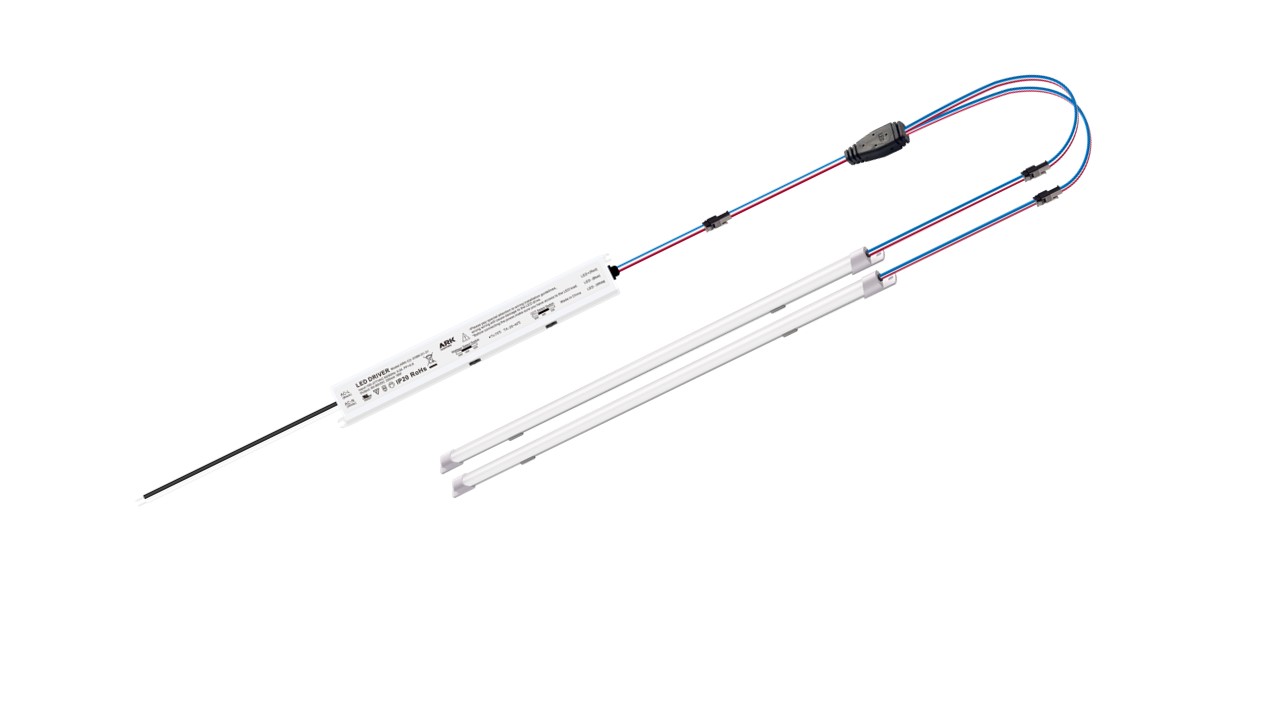

Magnetic LED Retrofit Strip Kit

Magnetic LED Retrofit Strip Kit

  • Input at AC100-277V.

  • 3000K-4000K-5000K CCT.

  • 130lm/w with cover.

  • External driver from 12w to 36w.

  • 0-10V dimming.

  • Magnet adhesive, and installation hole on both end.

Magnetic LED Retrofit Strip Kit
Inquire Now

Magnetic LED Retrofit Strip Kit

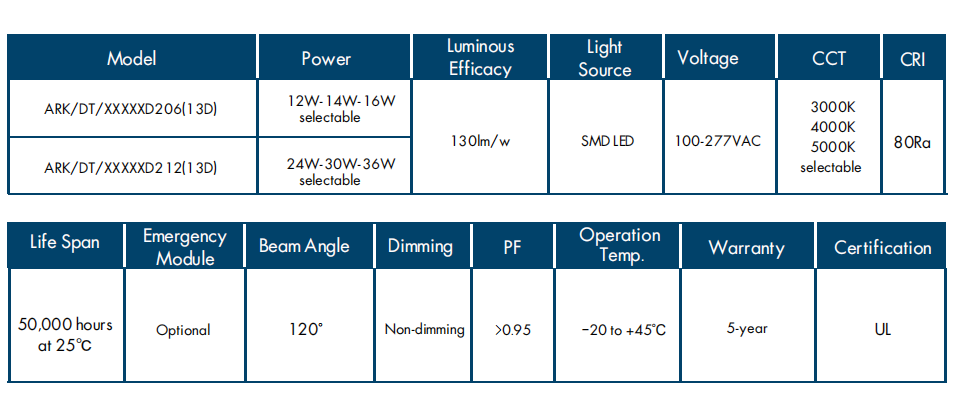

Specifications:

Magnetic LED Retrofit Strip Kit

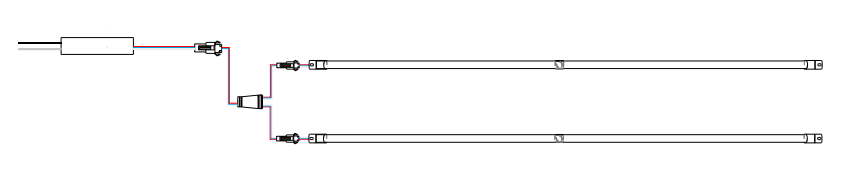

Wiring Diagram:

Magnetic LED Retrofit Strip Kit

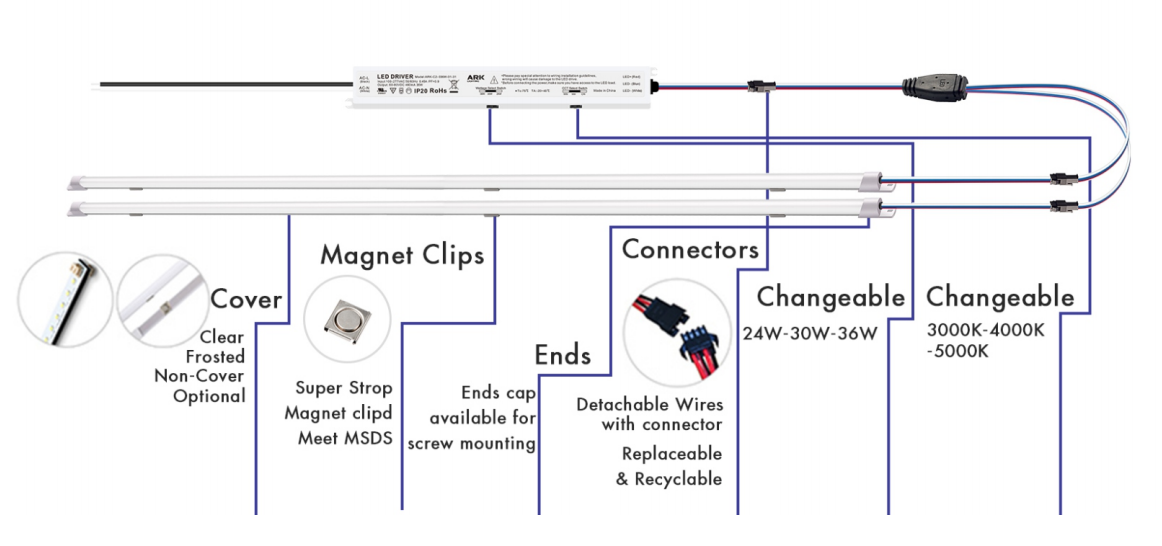

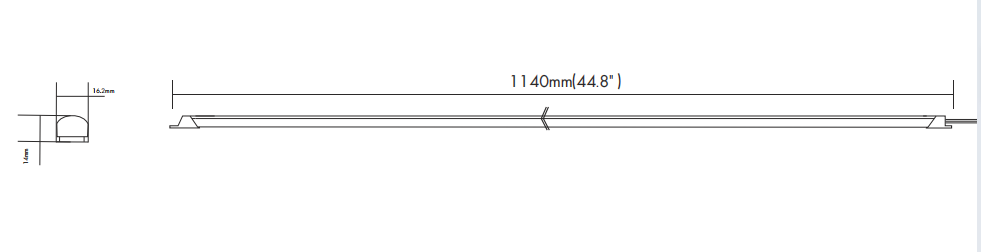

Structure:

Magnetic LED Retrofit Strip Kit


Magnetic LED Retrofit Strip Kit
Magnetic LED Retrofit Strip Kit

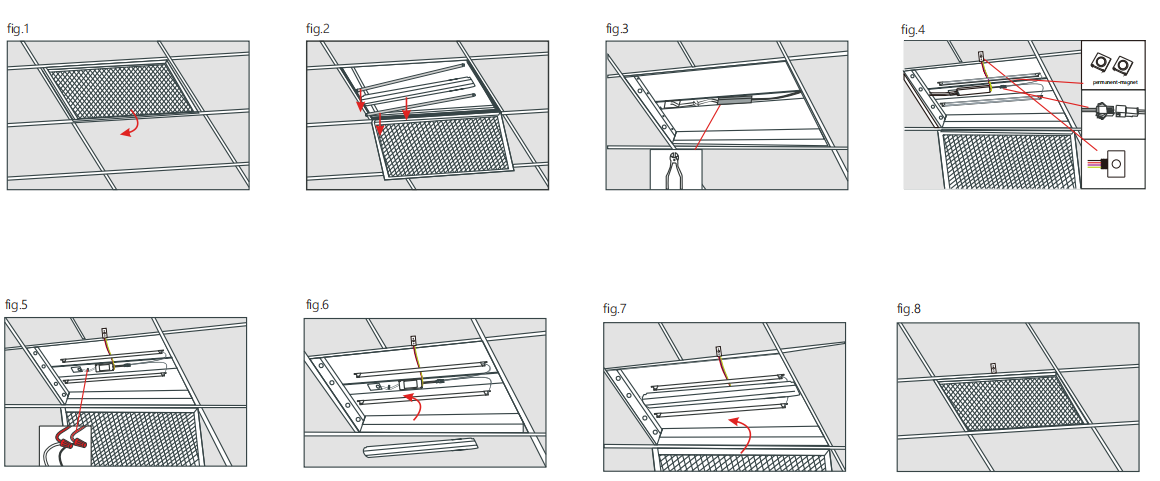

Installation instructions:

  1. Open the old Fixture's Cover.

  2. Take out Tubes and Reflector (if any).

  3. Take out the ballast Insulated or capped all unused conductors with wire connectors.

  4. Install Magnetic strips (must be secured by screws) .

  5. Install drivers by screws to where the ballast removed and rewiring.

  6. Install the Reflector(if any).

  7. Close the Cover.

  8. Turn on the light.

Magnetic LED Retrofit Strip Kit

-->

Magnetic LED Retrofit Strip Kit
