Dimmable Bluetooth magnetic led light strip led troffer retrofit kits

Dimmable Bluetooth magnetic led light strip is a long-lasting and money-saving solution that retrofit traditional fluorescent 1x4, 2x2, 2x4 light fixtures.

Inquire Now

Magnetic LED Light Strip LED Troffer Retrofit Kits

ARK lighting fluorescent to led retrofit kits is a long lasting and money-saving solution that retrofit traditional 1x4, 2x2, 2x4 light fixtures.Kits offer high efficiency 140-150lm/w, Eco-Friendly, and simple magnetic installation. Applications including offices, lobbies, hallways and conference rooms in schools municipalities, libraries, airport, healthcare facilities and so on.

Dimmable magnetic LED light strip features:

1. Input at AC100-277V.

2. 150lm/w without cover or 140lm/w with cover.

3. External driver from 9w to 72w.

4. Dimming optional.

5. Magnet adhesive, and installation hole on both end.

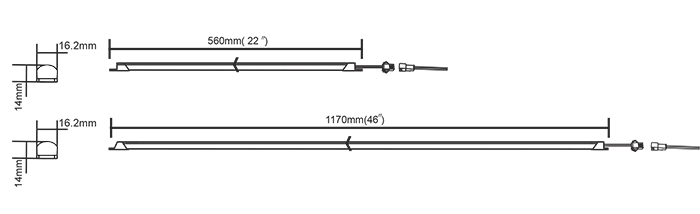

Structures of Magnetic LED light strip troffer retrofit kit

Magnetic led light strip led troffer retrofit kits structure

Specification of Magnetic LED light strip LED troffer retrofit kits

1 strips for troffer

2 strips for troffer

3 strips for troffer

4strips for troffer

Power	8W	16W	24W	32W
Model	ARK/DT/16K**D106(13D)	ARK/DT/16K**D206(13D)	ARK/DT/24K**D306(13D)	ARK/DT/32K**D406(13D)
Luminous Flux	140LM	140LM	140LM	140LM

Power	12W	24W	36W	48W
Model	ARK/DT/12K**D112(13D)	ARK/DT/24K**D212(13D)	ARK/DT/36K**D312(13D)	ARK/DT/48K**D412(13D)
Luminous Flux	140LM	140LM	140LM	140LM

Power	18W	36W	54W	72W
Model	ARK/DT/18K**D112(13D)	ARK/DT/36K**D212(13D)	ARK/DT/54K**D312(13D)	ARK/DT/72K**D412(13D)
Luminous Flux	140LM	140LM	140LM	140LM
DLC certification	Y	Y	Y	Y
Dimension	2ft: 22"		4ft: 46"
Light Source	SMD2835 LED
Luminous Efficacy	>140lm/w
Operation Temp	-40 to +45℃
CRI	80
Life Span	50,000 hours at 25℃
Voltage	100-277VAC / 50-60HZ
Driver	UL listed power supply
Emergency Module	Available
Dimming	0-10V
Sensor	Daylight sensor Microwave motion available 2 & 1
Beam Angle	120°
PF	>0.95
Warranty	5 Years

Wireless Bluetooth Remote Control Switch

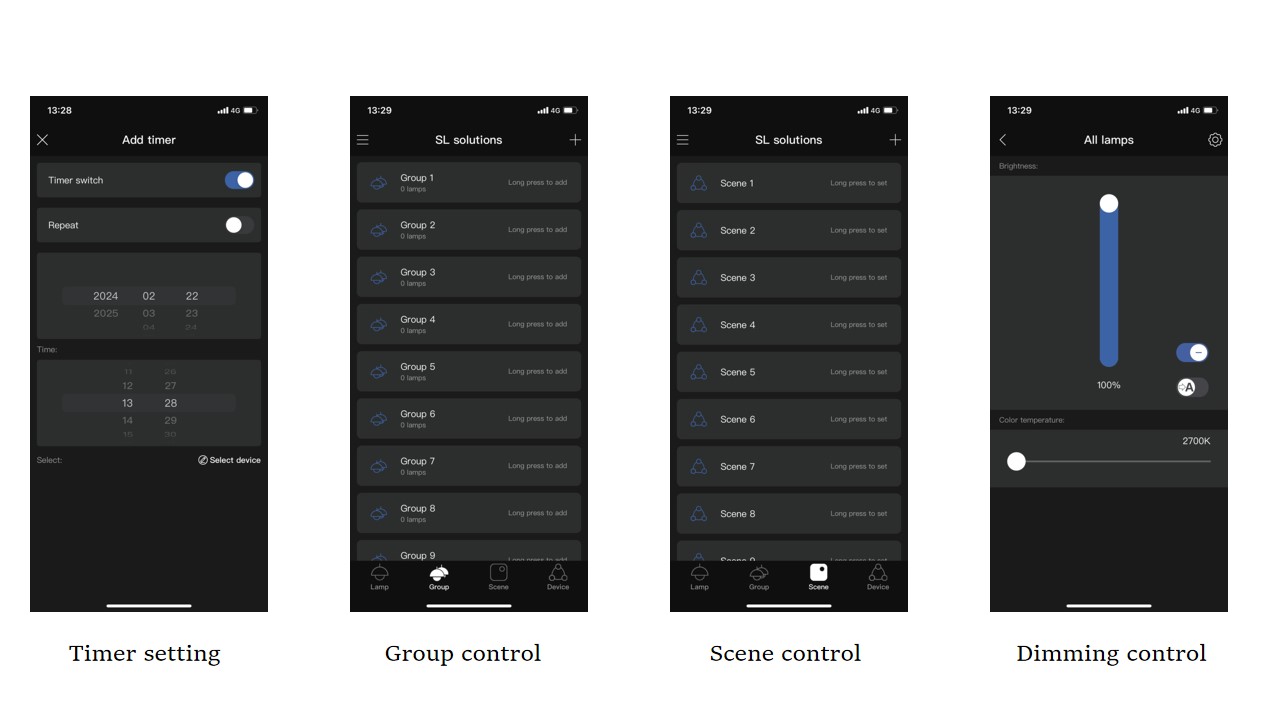

Led troffer retrofit kits bluetooth APP Switch

* Support iOS phones.

* Easily add and manage lamps and smart switches.

* Use APP to group lamps.

* Set lighting scenes.

* Manage timer tasks.

* Configure delay time of human motion sensor.

* Configure group linkage control.

* Manage lamps of different areas in one smartphone.

* Share control privilege among smartphones

* Assign different privileges to staff to manage lamps.

Dimmable Bluetooth magnetic led light strip led troffer retrofit kits

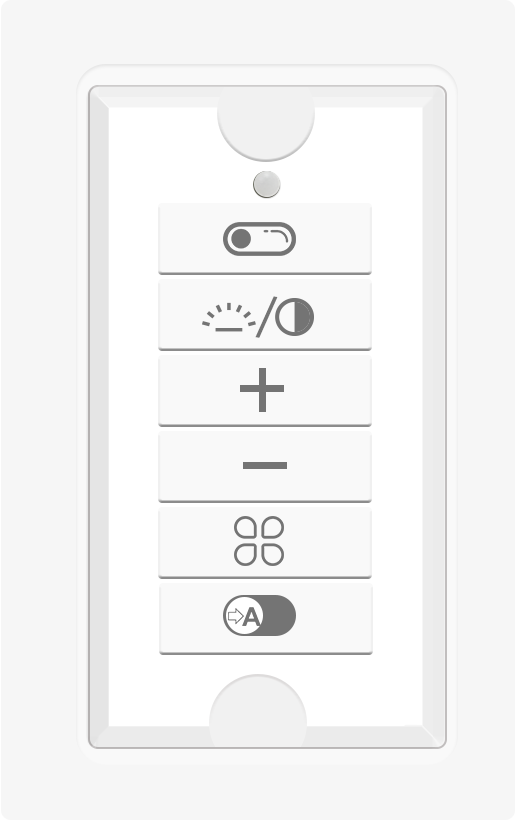

Led troffer retrofit kits bluetooth Panel Switch

Bluetooth communication.

Easy installation: suitable for surface-mounted or recessed in the wall. Or just leave it on the desk and used as an remote control.

Wide input voltage AC 100 - 277V 50 / 60Hz

Dimmable Bluetooth magnetic led light strip led troffer retrofit kits

Industries We Serve

The intelligent energy-efficient lighting control system

dimmable Magnetic led light strip led troffer retrofit kits application

Installation instructions:

-->

Magnetic led light strip led troffer retrofit kits

Package information of Magnetic led light strip led troffer retrofit kits

	2'x2'	2'x4'	Driver
	L(cm)W(cm)H(cm)	L(cm)W(cm)H(cm)	L(cm)W(cm)H(cm)
Carton size	653027.5	1253027.5	35.230.510.8
Q’ty/CTN	100	100	30
N.W(KG)	4.5	8.6	7.5
G.W(KG)	5.5	9.5	8.5
0.6M Package size(mm)	20'GP : 5898×2352×2385 A: 13808801050 B: 138011501050	1x1 tube:21000 PCS 1x2 tube:25200 PCS 1x3 tube:25200 PCS 1x4 tube:12600 PCS	20'GP : 126011001100



	40'GP ：12032×2352×2385 A: 13808801050 B: 138011501050	1x1 tube:42000 PCS 1x2 tube:46200 PCS 1x3 tube:46200 PCS 1x4 tube:50400 PCS	40'GP :126011001100



	40'HQ ：1203223522690 A: 13808801050 B: 13808801350	1x1 tube:42000 PCS 1x2 tube:46200 PCS 1x3 tube:46200 PCS 1x4 tube:58800 PCS	40'HQ ：14509601230



1.2M Package size(mm)	20'GP : 5898×2352×2385 A: 130011501050 B: 13008701050	1x1 tube:12600 PCS 1x2 tube:14400 PCS 1x3 tube:14400 PCS 1x4 tube:14400 PCS	20'GP : 96011001000



	40'GP ：12032×2352×2385 A: 130011501050 B: 13008701050	1x1 tube:29400 PCS 1x2 tube:31200 PCS 1x3 tube:33600 PCS 1x4 tube:33600 PCS	40'GP ：A:126011001100



	40'HQ ：12032×2352×2690 A: 130011501050 B: 13008701050	1x1 tube:29400 PCS 1x2 tube:31200 PCS 1x3 tube:33600 PCS 1x4 tube:31800 PCS	40'HQ ：126011001230

how motion & daylight sensor works?
