smart magnetic led light strip with Bluetooth control

Smart Bluetooth magnetic led light strip | led troffer retrofit kit | fluorescent to led retrofit kits is a long-lasting and money-saving solution that retrofit traditional fluorescent 1x4, 2x2, 2x4 light fixtures.

Inquire Now

Smart Bluetooth Control Magnetic Led Light Strip

ARK lighting fluorescent to led retrofit kits is a long-lasting and money-saving solution that retrofit traditional 1x4, 2x2, 2x4 light fixtures. Kits offer high-efficiency 140-150lm/w, Eco-Friendly, and simple magnetic installation.

Applications including offices, lobbies, hallways and conference rooms in schools municipalities, libraries, airport, healthcare facilities and so on.

Magnetic led light strip features:

1. Input at AC100-277V.

2. 3000K,3500K,4000K,4500K,5000K CCT.

3. 150lm/w without cover or 140lm/w with cover.

4. The external driver from 9w to 72w.

5. Dimming optional.

6. Magnet adhesive, and installation hole on both ends.

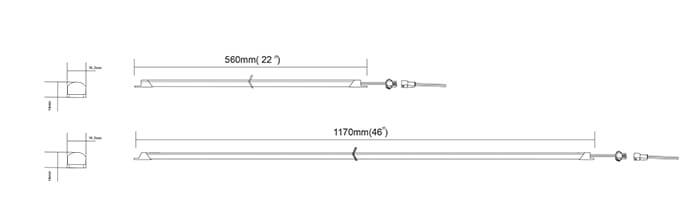

Structures of smart bluetooth control magnetic led light strip

Smart Bluetooth Control Magnetic Led Light Strip structure

Specification of Smart Bluetooth Control Magnetic led light strip

1 strip for troffer

2 strips for troffer

3 strips for troffer

4strips for troffer

Power	8W	16W	24W	32W
Model	ARK/DT/16K**D106(13D)	ARK/DT/16K**D206(13D)	ARK/DT/24K**D306(13D)	ARK/DT/32K**D406(13D)
Luminous Flux	140LM	140LM	140LM	140LM

Power	12W	24W	36W	48W
Model	ARK/DT/12K**D112(13D)	ARK/DT/24K**D212(13D)	ARK/DT/36K**D312(13D)	ARK/DT/48K**D412(13D)
Luminous Flux	140LM	140LM	140LM	140LM

Power	18W	36W	54W	72W
Model	ARK/DT/18K**D112(13D)	ARK/DT/36K**D212(13D)	ARK/DT/54K**D312(13D)	ARK/DT/72K**D412(13D)
Luminous Flux	140LM	140LM	140LM	140LM
DLC certification	Y	Y	Y	Y
Dimension	2ft: 22"		4ft: 46"
Light Source	SMD2835 LED
Luminous Efficacy	>140lm/w
Operation Temp	-40 to +45℃
CCT	2700K -- 6700K CW
CRI	80
Life Span	50,000 hours at 25℃
Voltage	100-277VAC / 50-60HZ
Driver	UL listed power supply
Emergency Module	Available
Dimming	0-10V
Sensor	Daylight sensor Microwave motion available 2 & 1
Beam Angle	120°
PF	>0.95
Warranty	5 Years

Smart Wireless Bluetooth Remote Control Switch

Magnetic led light strip Bluetooth APP Switch

Support iOS, Android phones.

Easily add and manage lamps and smart switches.

* Use APP to group lamps.

* Set lighting scenes.

* Manage timer tasks.

* Configure delay time of human motion sensor.

* Configure group linkage control.

* Manage lamps of different areas in one smartphone.

* Share control privilege among smartphones

* Assign different privileges to staff to manage lamps.

* Compatible with most Android phones

Smart Bluetooth Control Magnetic Led Light Strip APP switch

Magnetic led light strip Bluetooth Panel Switch

Bluetooth communication.

No wires needed. Easy installation: suitable for surface-mounted or recessed in the wall. Or just leave it on the desk.

When the voltage less than 2.6V, press any buttons and the red light flashes.

Smart Bluetooth Control Magnetic Led Light Strip panel switch

Industries We Serve

The intelligent energy-efficient lighting control system

Smart Bluetooth Control Magnetic Led Light Strip application

Installation instructions:

-->

Smart Bluetooth Control Magnetic Led Light Strip package

Package information of Smart Bluetooth control Magnetic led light strip

	2'x2'	2'x4'	Driver
	L(cm)W(cm)H(cm)	L(cm)W(cm)H(cm)	L(cm)W(cm)H(cm)
Carton size	653027.5	1253027.5	35.230.510.8
Q’ty/CTN	100	100	30
N.W(KG)	4.5	8.6	7.5
G.W(KG)	5.5	9.5	8.5
0.6M Package size(mm)	20'GP : 5898×2352×2385 A: 13808801050 B: 138011501050	1x1 tube:21000 PCS 1x2 tube:25200 PCS 1x3 tube:25200 PCS 1x4 tube:12600 PCS	20'GP : 126011001100



	40'GP ：12032×2352×2385 A: 13808801050 B: 138011501050	1x1 tube:42000 PCS 1x2 tube:46200 PCS 1x3 tube:46200 PCS 1x4 tube:50400 PCS	40'GP :126011001100



	40'HQ ：1203223522690 A: 13808801050 B: 13808801350	1x1 tube:42000 PCS 1x2 tube:46200 PCS 1x3 tube:46200 PCS 1x4 tube:58800 PCS	40'HQ ：14509601230



1.2M Package size(mm)	20'GP : 5898×2352×2385 A: 130011501050 B: 13008701050	1x1 tube:12600 PCS 1x2 tube:14400 PCS 1x3 tube:14400 PCS 1x4 tube:14400 PCS	20'GP : 96011001000



	40'GP ：12032×2352×2385 A: 130011501050 B: 13008701050	1x1 tube:29400 PCS 1x2 tube:31200 PCS 1x3 tube:33600 PCS 1x4 tube:33600 PCS	40'GP ：A:126011001100



	40'HQ ：12032×2352×2690 A: 130011501050 B: 13008701050	1x1 tube:29400 PCS 1x2 tube:31200 PCS 1x3 tube:33600 PCS 1x4 tube:31800 PCS	40'HQ ：126011001230

how motion & daylight sensor works?
