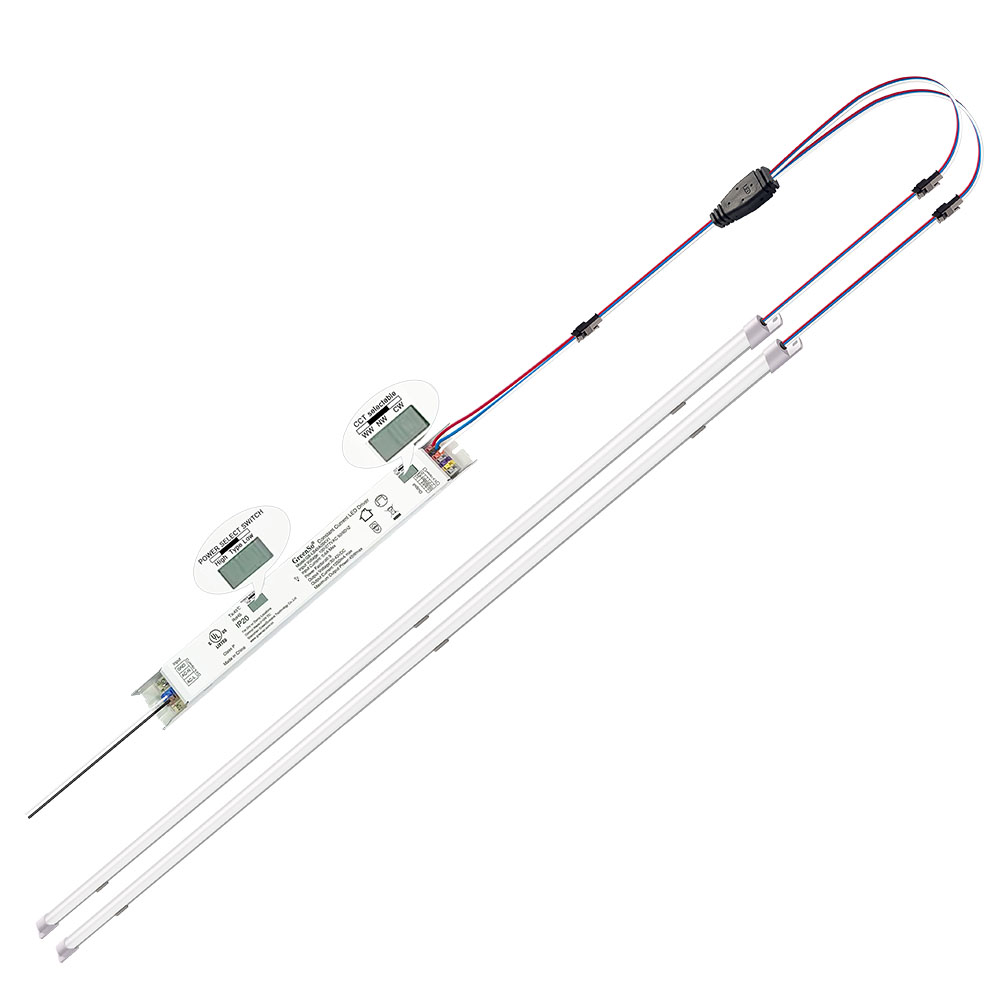

Magnetic LED Retrofit Strip Kit (BLE Control Dimming & CCT Tunable)

Magnetic LED Retrofit Strip Kit (BLE Control Dimming & CCT Tunable)

  • Input at AC100-277V.

  • 3000K-6000K CCT.

  • 140lm/w with cover.

  • External driver from 9w to 72w.

  • Dimming optional.

  • Magnet adhesive, and installation hole on both end.

Inquire Now

Magnetic LED Retrofit Strip Kit (BLE Control Dimming

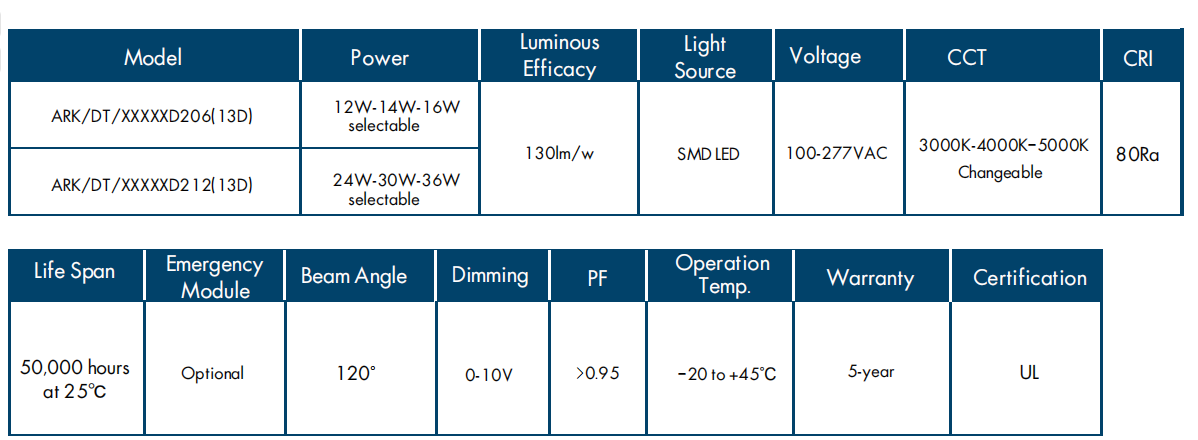

Specifications:

Magnetic LED Retrofit Strip Kit (BLE Control Dimming

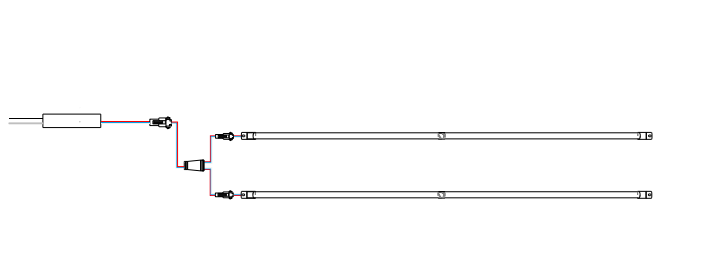

Wiring Diagram:

Magnetic LED Retrofit Strip Kit (BLE Control Dimming

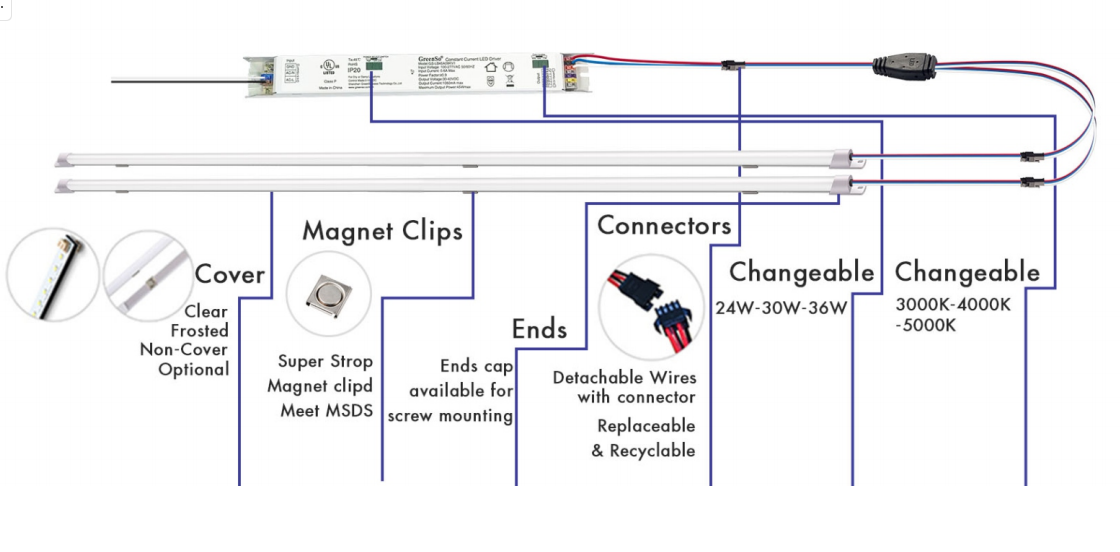

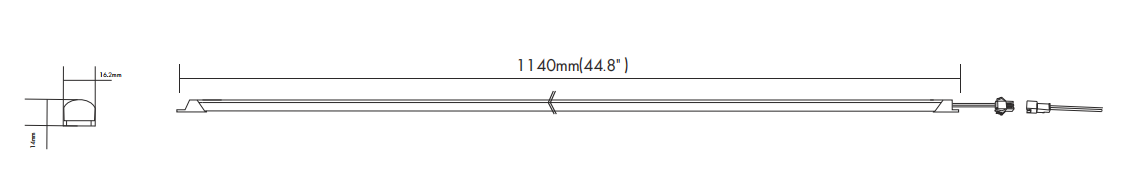

Structure:

Magnetic LED Retrofit Strip Kit (BLE Control Dimming

Magnetic LED Retrofit Strip Kit (BLE Control Dimming & CCT Tunable)

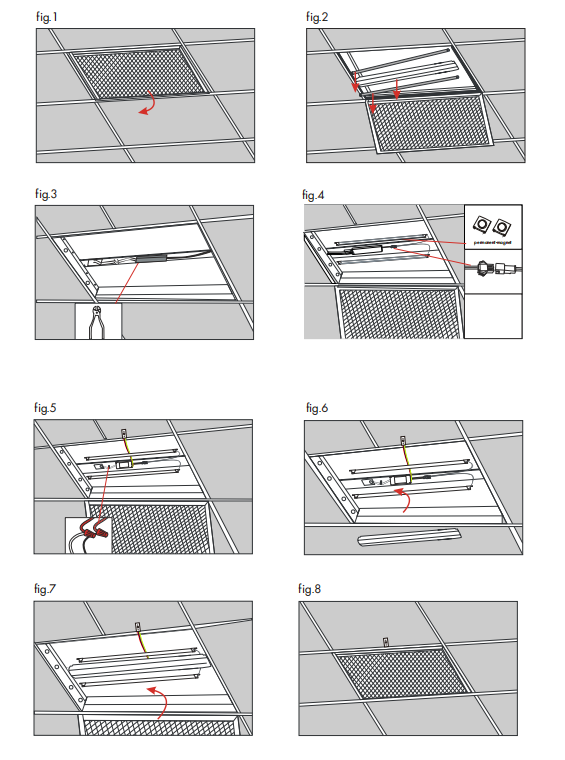

Installation instructions:


Open the old Fixure's Cover.

Take out Tubes and Reflector (if any).

Take out the ballast Insulated or capped all unused conductors with wire connectors.

Install Magnetic strips (must be secured by screws) .

Install drivers by screws to where the ballast removed and rewiring.

Install the Reflector(if any).

Close the Cover.

Turn on the light.

Magnetic LED Retrofit Strip Kit (BLE Control Dimming


-->

Magnetic LED Retrofit Strip Kit (BLE Control Dimming
