UL DLC TypeA/TypeB AL+PC T5/T6 LED tube

UL DLC TypeA/TypeB AL+PC T5/T6 LED tube

input voltage: AC100-277V

material: AL+PC

correlated color temperature: 3000K-6000K

power: 9-30w

size: 0.6m 0.9m 1.2m 1.5m

UL DLC TypeA/TypeB AL+PC T5/T6 LED tubeUL DLC TypeA/TypeB AL+PC T5/T6 LED tubeUL DLC TypeA/TypeB AL+PC T5/T6 LED tube
Inquire Now

Advantages:

AC Power 100-277Vdirectly by two ends.

Power factor: same as ballast in use,usually>0.95.

High-tech optical design.

Replace T5, T5 HO fluorescent tubes; Half aluminum half PC type and Glass type are optional.


Configuration:


LengthPowerLumenCRItype B
2ft10w1400lm80+type B
3ft15w1600lm
4ft15w1800lm
4ft22w3200lm





LengthPowerLumenCRItype A
2ft10w1400lm80+type A
3ft15w1600lm
4ft15w1800lm
4ft22w3200lm


UL DLC TypeA/TypeB AL+PC T5/T6 LED tube

Installation instructions:

t5 t6 led tube light installation guide

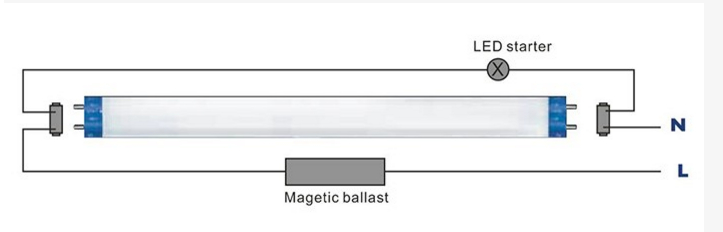

Method A: Work with magnetic ballast

Connect with Magnetic ballast:

1.Turn off the power

2.Remove the  fluorescent tube

3.Install ARK led tube in one end

4.Turn on the light

how to bypass a ballast to install t5 t6 led tubes TypeA+B

If ballast broken, can rewiring AC96-265V connect directly

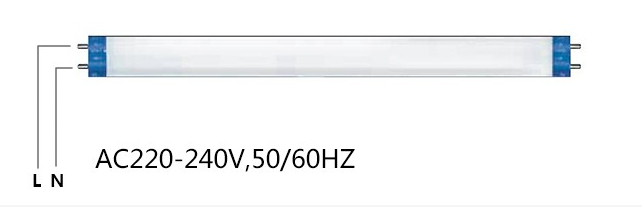

Method B:AC220-240V Connect Directly:

1.Turn off the power

2.Take out the ballast and starter,rewiring

3.AC 96-265V connect directly

4.Turn on the light.

-->

UL DLC TypeA/TypeB AL PC T5/T6 LED tube
