AL+PC T5/T6 LED tube

AL+PC T5/T6 LED tube

T5/T6 led tube light

input voltage: AC100-240V

material: AL+PC

correlated color temperature: 3000K-6000K

power:9-30w

certification:CE ROHS

AL+PC T5/T6 LED tubeAL+PC T5/T6 LED tube
Inquire Now

Advantages:

Direct wire t5/t6 led tube: AC Power 100-277Vdirectly by two ends.

Power factor: same as ballast in use, usually>0.95.

High-tech optical design.

Replace T5, T5 HO fluorescent tubes; Half aluminum half PC type and Glass type are optional.


Features:

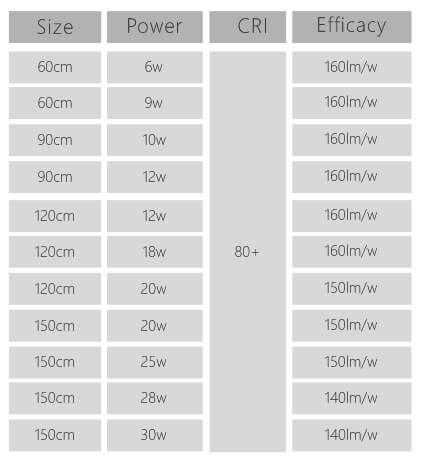

T5 T6 LED tube light technical configuration

AL+PC T5/T6 LED tube

Installation instructions:

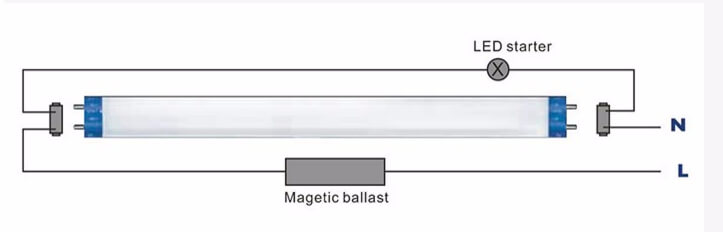

T5 T6 LED tube install diagram

Method A: Work with magnetic ballast


Connect with Magnetic ballast:

1.Turn off the power

2.Remove the  fluorescent tube

3.Install ARK led tube in one end

4.Turn on the light

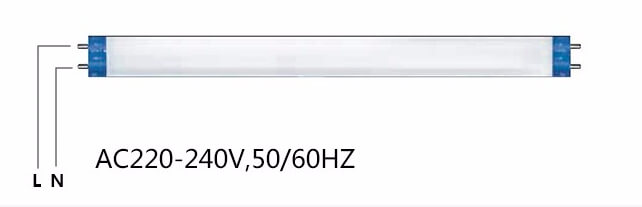

t5 t6 led tube light install

If ballast broken, can rewiring AC96-265V connect directly



Method B:AC220-240V Connect Directly:

1.Turn off the power

2.Take out the ballast and starter,rewiring

3.AC 96-265V connect directly

4.Turn on the light.

-->

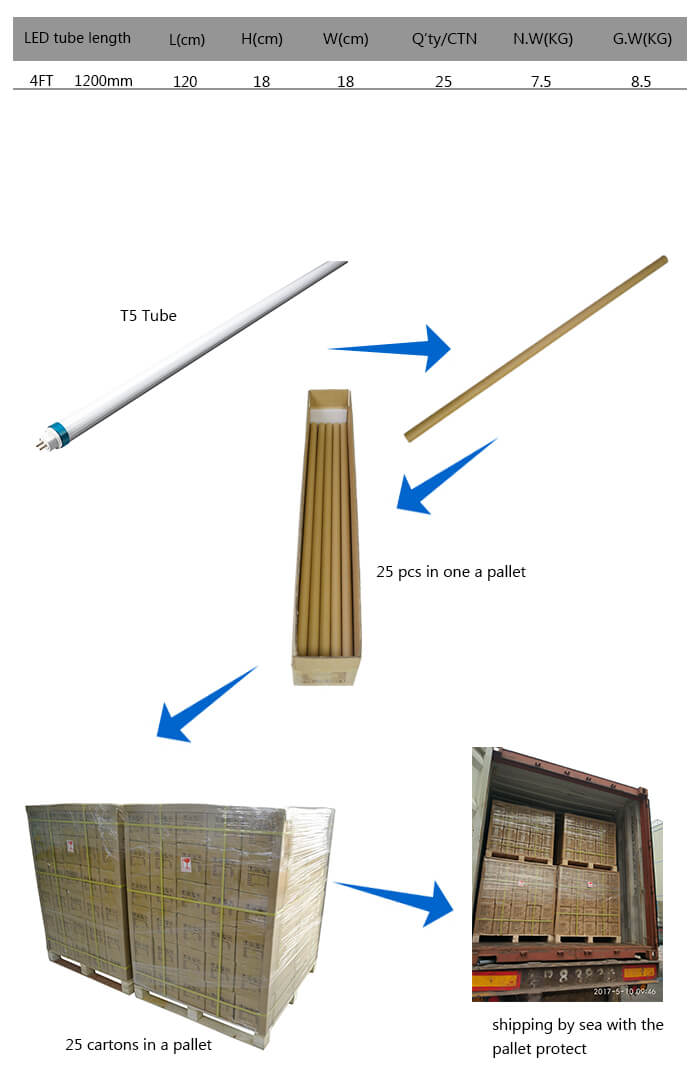

AL PC T5/T6 LED tube
