T8 KVG & EVG compatible LED Tube

T8 KVG & EVG compatible LED Tube

High lumen output, high quality led tube, up to 140lm/w.

PC cover with D shape aluminum heat sink inside, double insulation, total 0 risk for electric shock.

T8 KVG & EVG compatible LED Tube T8 KVG & EVG compatible LED Tube T8 KVG & EVG compatible LED Tube
Inquire Now

T8 led tube light

Product description:

High lumen output, high quality led tube, up to 110lm/w & 140lm/w.

PC cover with D shape aluminum heat sink inside, double insulation, total 0 risk for electric shock.

Three modes, KVG&EVG compatible or 100-240V power connected directly.

Input voltage: AC100-240V

Material: ALL PC outside + Aluminum inside

Correlated color temperature: 3000K-6000K

Certification:CE,VDE,Rohs


Key Features:


LengthPowerLumenMaterialCRI
600mm9w140LMALL PC80+
900mm15w140LMALL PC
1200mm18w140LMALL PC
1500mm24w140LMALL PC


T8 KVG & EVG compatible LED Tube
T8 KVG & EVG compatible LED Tube

Installation instructions:

led fluorescent tube replacement install

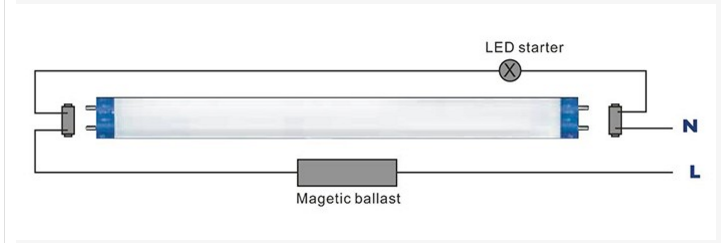

Method A: Work with magnetic ballast



Connect with Magnetic ballast:

1.Turn off the power

2.Remove the  fluorescent tube

3.Install ARK led tube in one end

4.Turn on the light

led replacement for t8 fluorescent tubes



If ballast broken, can rewiring AC96-265V connect directly

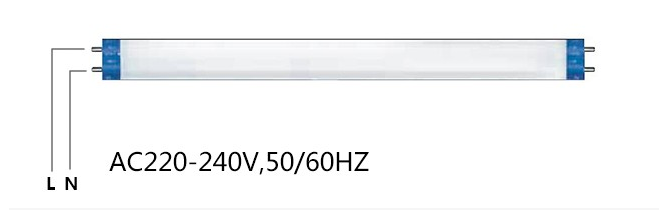

Method B:AC220-240V Connect Directly:

1.Turn off the power

2.Take out the ballast and starter,rewiring

3.AC 96-265V connect directly

4.Turn on the light.

-->

T8 KVG
