Installation instructions:
led troffer retrofit kit installation conversion kit
ARK Lighting innovative Lensed led troffer lights retrofit kit series offer service is retrofitted into most existing 2x2 led troffer and 2x4 led troffer in just about 10 minutes.
Features:
Quick Installation of Lensed Retrofit Kit in existing luminaire without the need to break the ceiling plenum.
Edge-Lit LED light source hence very thin profile.
True to Life Color Rendering CRI of 83
Custom CCTs available upon request
LM-80 chip yields over 100,000-hour L70 lifetime using
TM-21 extrapolation
Construction:
Galvanized steel body.
Reflective white finish improves retrofit efficacy

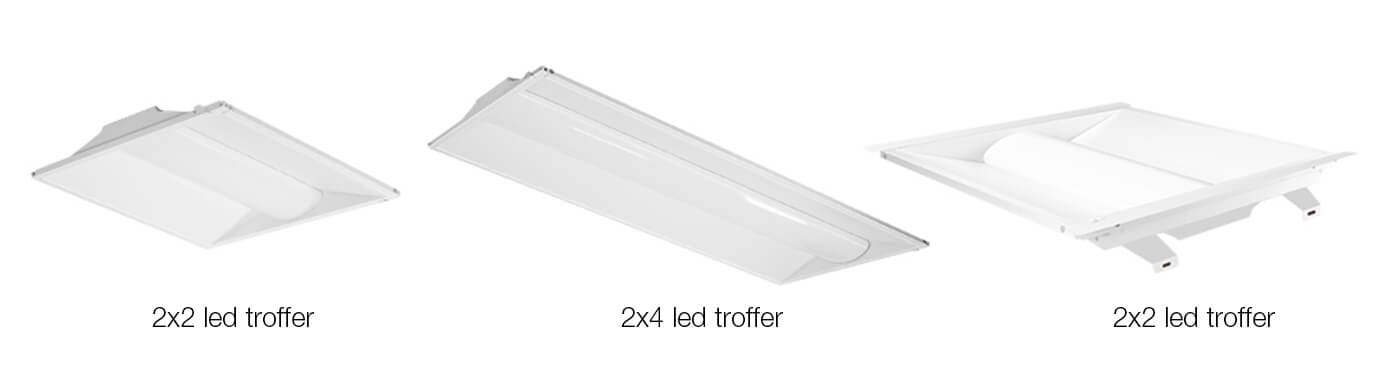

Standard Dimension for 2x4 & 2x2 Retrofits
Fits Most of Existing 2x4 Troffer without having to remove the fixture.
Control:
ARK Lensed Retrofit Kits are supplied with a 0-10v simple dimming driver Compatible with standard 0-10v dimming controls
Configuration:
| Model | Size | Power | Efficient | CRI | CCT |
| ARK22R24DN130(XXK) | 2' x 2' | 20w | 150lm/w | 80+ | 3000K 4000K 5000K |
| ARK22R30DN130(XXK) | 2' x 2' | 24w | 130lm/w | ||
| ARK24R20DN150(XXK) | 2' x 4' | 20w | 150lm/w | ||
| ARK24R28DN150(XXK) | 2' x 4' | 30w | 150lm/w | ||
| ARK24R40DN130(XXK) | 2' x 4' | 40w | 130lm/w | ||
| ARK24R50DN130(XXK) | 2' x 4' | 50w | 130lm/w | ||
size
photometric

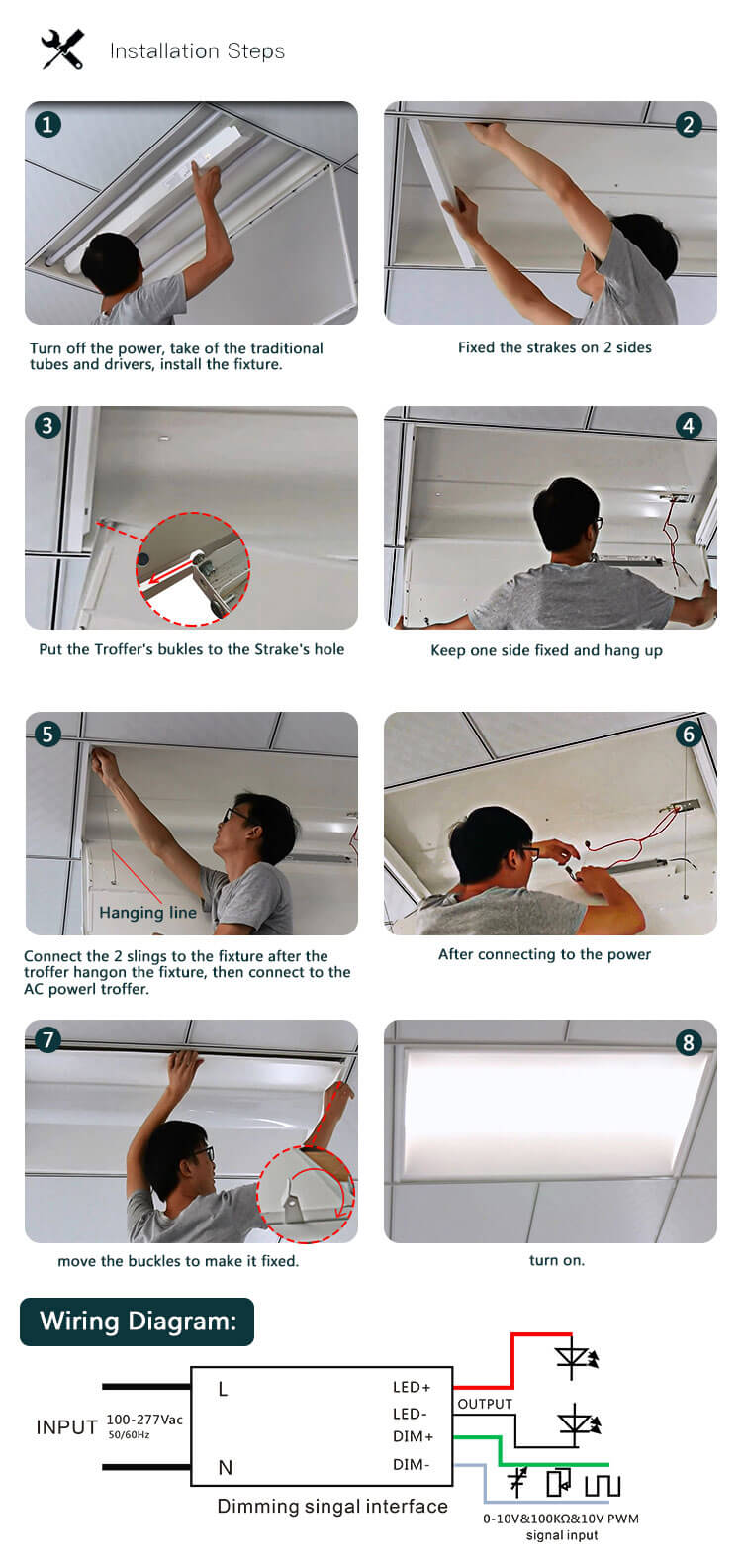

install

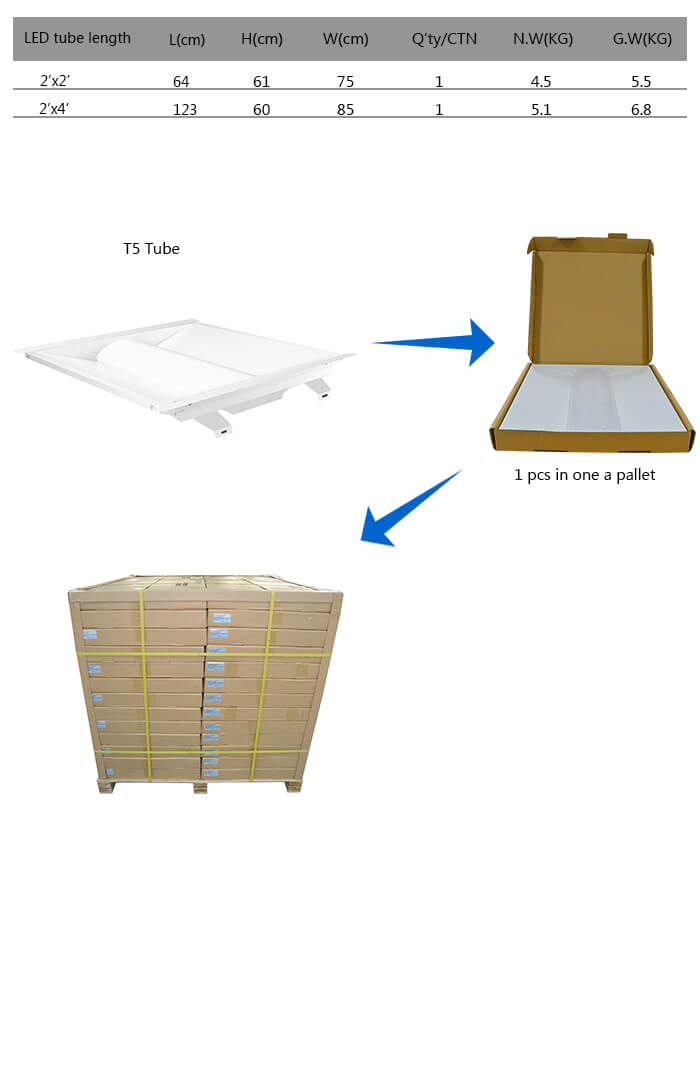

package
video Installation instructions:
led troffer retrofit kit installation conversion kit
