Smart led lighting control panel light

Smart led lighting control panel light

Wireless smart Bluetooth mesh lighting control system.

2x2 2x4 1x4 LED ceiling flat lighting control tunable white Panel lights with dimmable motion and daylight sensor.

Smart led lighting control panel lightSmart led lighting control panel lightSmart led lighting control panel lightSmart led lighting control panel lightSmart led lighting control panel light
Inquire Now



smart lighting control flat led ceiling light panels




smart lighting control 2x2 2x4 1x4 led flat tunable white panels lights


Tunable white LED Panel light Features:

* Back light panel with pmma lens with 10 years life.

* Warranty: 5 years.

* Input Voltage: 100-277Vac | 0-10V dimmable | PF>0.9 | THD<20.

* High efficiency, up to 135lm/W RA:80.

* 45mm thickness, driver on the side frame.

* 50,000hrs life design for driver and LED.

* Smart dimming or color tuning for optional.

* BLE Mesh smart control, with motion and daylight 2-in-1 sensor.


Benefits of lighting control smart light panels:

Bluetooth mesh smart control led tunable white panel light offer a new lighting solution.

Dimmable and CCT adjustable, with motion sensor and daylight harvesting, which can be easily controlled by APP and remote control.

The back-lit technology makes the life no longer limited to the LGP. Significantly reduce subsequent maintenance costs, and price is competitive.

It provides high uniformity, excellent efficiency and reduced glare in T-grid ceiling applications.









Specification of Bluetooth mesh lighting control led flat tunable white panel lights


Model

Size

(ft)

Power

(w)

LPW

(LM/W)

CRI

Ra

LED

class

BLIT-2X2-20DR-P1-50-TYDZ-RS2X22013080+P195.50K
BLIT-2X2-30DR-P1-50-TYDZ-RS2X230
BLIT-2X4-40DR-P1-50-TYDZ-RS2X440
BLIT-1X4-20DR-P1-50-TYDZ-RS1X420
BLIT-1X4-30DR-P1-50-TYDZ-RS1X430
CCT2700K-6500K
DimmingSmart dimming by App/remote control
Input voltage100-277Vac 50/60Hz
Warranty5 years
IPTotal lamp IP40
IKIK 02
Operating temperature
range
0 to +40 ℃
Ceiling TypeExposed T-bar ceiling
Lamep Color RALWhite (RAL 9003)
Beam angle120°



smart lighting control 2x2 2x4 1x4 slim led flat panels lights

smart lighting control 2x2 2x4 1x4 high quality led ceiling lights panels

smart lighting control 2x2 2x4 1x4 led ceiling lights panels with reflective sheeting

smart lighting control 2x2 2x4 1x4 high efficiency led flat panels lights



Bluetooth mesh lighting control led ceiling light panels smart sensor detector range


Bluetooth mesh lighting control smart led flat ceiling lights panels sensor detector range



Benefits of LED flat panel light Bluetooth smart lighting control system


· Wireless bluetooth mesh connection.

· No gate, password, internet or cloud connection needed.

· Area/Group control, group linkage.

· Visualized map, by using blueprint or photo to install or control light.

· Real-time energy-saving calculation.

· Auto emergency battery test.




Bluetooth mesh wireless app & remote control

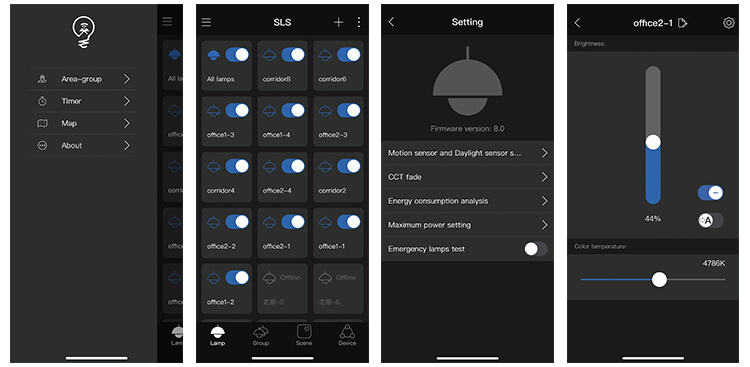

Bluetooth APP ControlSmart led lighting control panel light

Support iOS, Android phones.

Easily add and manage lamps and smart switches.

* Use APP to group lamps.

* Set lighting scenes.

* Manage timer tasks.

* Configure delay time of human motion sensor.

* Configure group linkage control.

* Manage lamps of different areas in one smartphone.

* Share control privilege among smartphones

* Assign different privileges to staff to manage lamps.

* Compatible with most Android phones




Bluetooth Remote Control

Bluetooth mesh network lighting control smart led ceiling panel light remote control


Bluetooth mesh network lighting control smart led ceiling panel light with app electricity statistics function

Electricity statistics

(sofeware function)



        In this interface, the customer can intuitively see the maximum power of the luminaire,

       the watt light parameters of the time power.

       Enter the electricity bill, you can check the cost of the lighting electricity, as well as the energy saving costs.




        The new version adds the power statistics function, which aims to let customers

        have a detailed understanding of the power consumption of all their lamps, and understand

        the power costs that the system helps them save.








Bluetooth mesh network lighting control smart led ceiling panel light with app Visualized Commissioning function



Visualized Commissioning

(sofeware function)



        By taking pictures of the real scene of the construction site or importing the real scene map,

       the map of the location of the luminaire will be automatically generated in the APP, and the location

       of the area and the location of the luminaire.




        New features will help customers quickly find their target fixtures and view the distribution of all fixtures.









Industries We Serve

The intelligent energy-efficient Bluetooth mesh network IOT lighting control system

12 years experience wholesale lighting company led ceiling light flat tunable white panels manufacturers


lighting control smart led ceiling panel light application

Smart led lighting control panel light
Smart led lighting control panel light

Installation instructions:

Smart lighting control led flat ceiling panel light install guide

-->

1x4 2x2 2x4 Smart lighting control led flat ceiling panel light package information

how motion & daylight sensor works?
