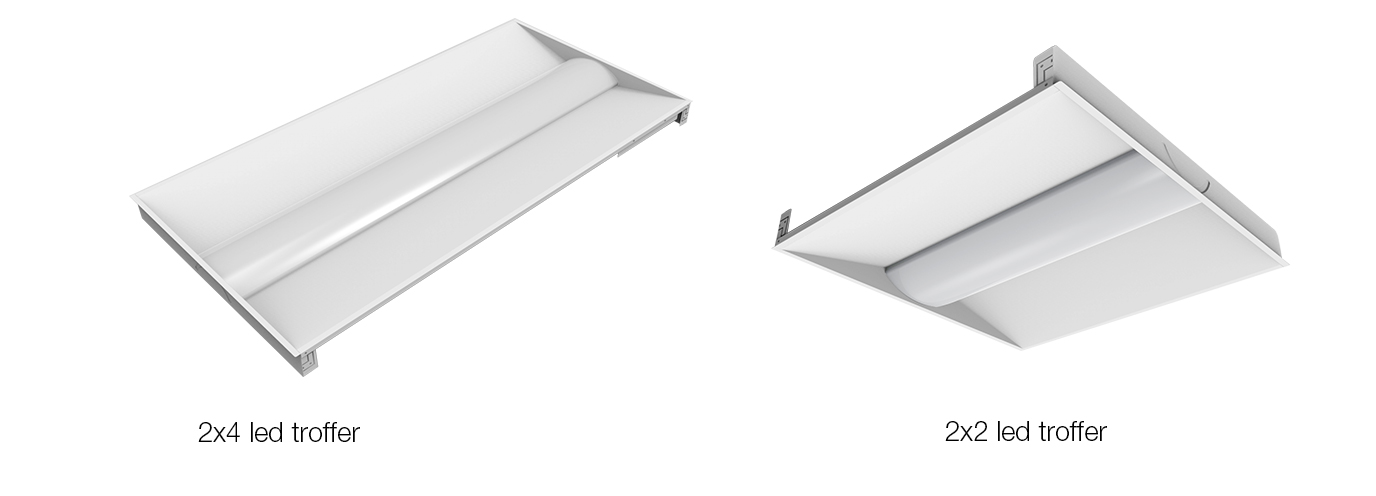

Led troffer light fixture

                        FEATURES:

                        Luminaire utilizes high-efficacy LED packages maintained at cool temperature for long life, high efficacy.

                        Edge-Lit LED light source hence very thin profile.

                        True to Life Color Rendering CRI of 83

                        Custom CCTs available upon request

                        LM-80 chip yields over 100,000 hour L70 lifetime using

                        TM-21 extrapolation

                        CONSTRUCTION:

                        Galvanized steel body.

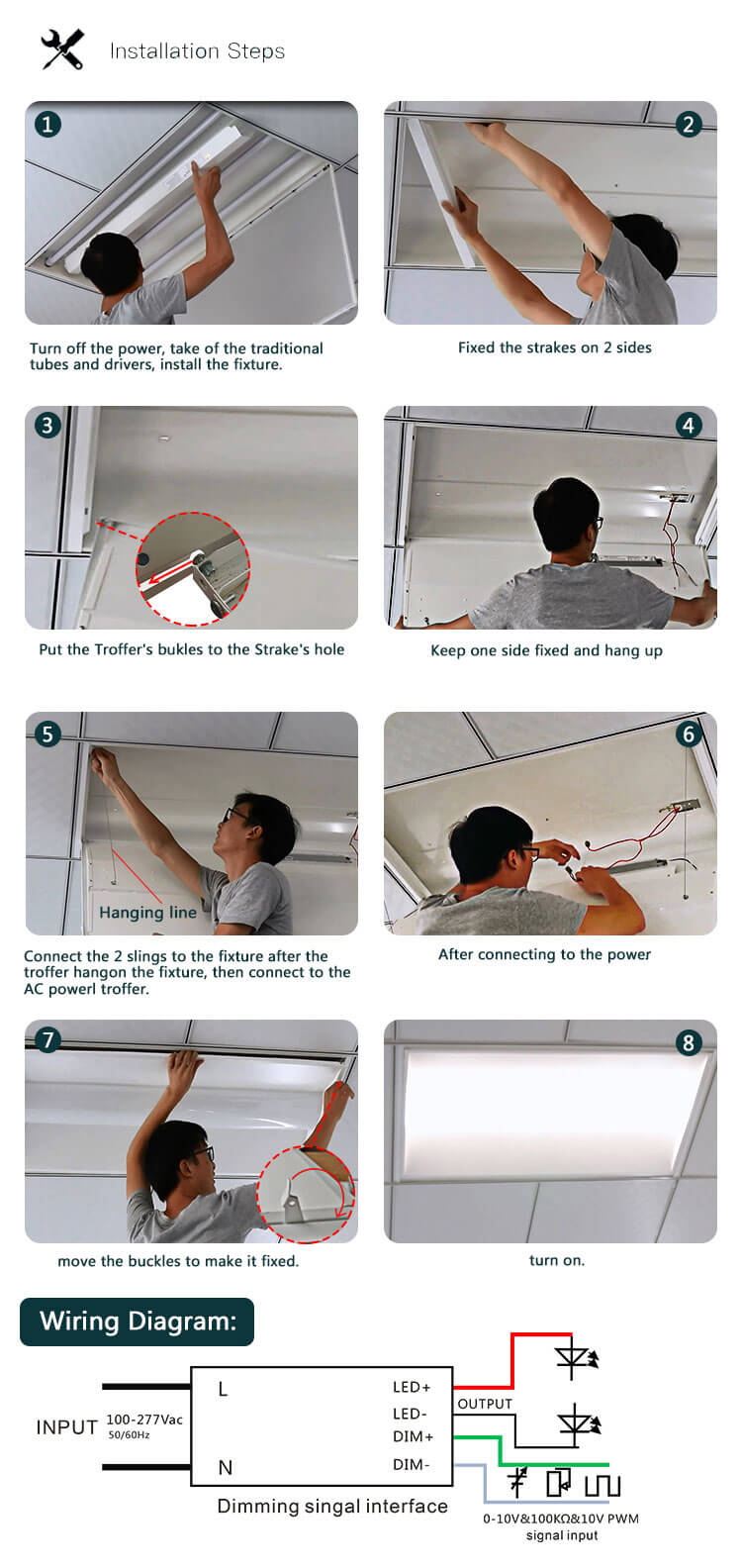

                        Installs in most standard T-bar ceiling grid systems.

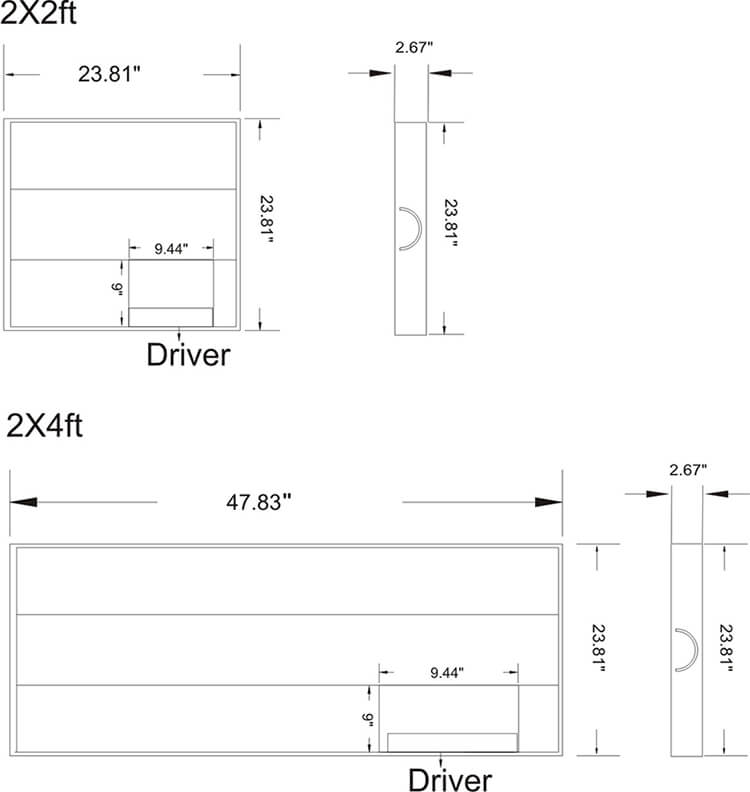

                        Standard Dimension for 2x4 & 2x2 Retrofits

                        Integral T-Bar clips into luminaire, diffuser requires no additional frame or fastener for easy installation.

                        CONTROL:

                        Continuous dimming (0-10V) comes standard, 3 in 1 dimming control by 0-10V, PMW and Resistance dimming.

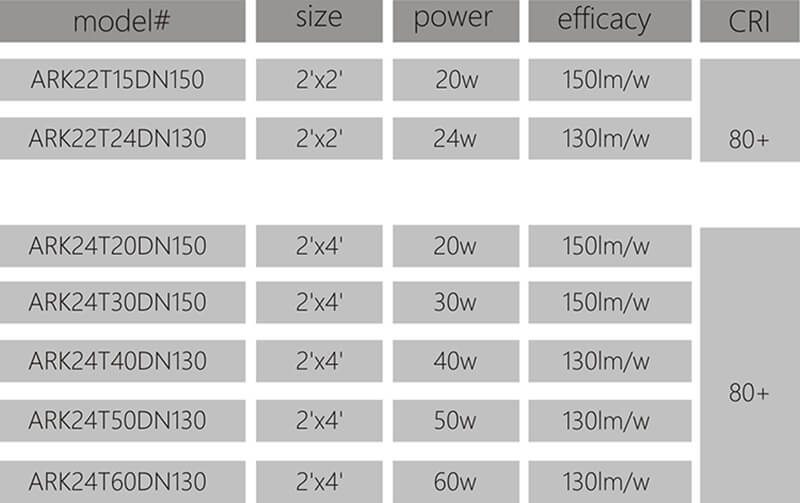

                        CONFIGURATION :
