Magnetic led light strip fluorescent to led retrofit kits
ARK lighting fluorescent to led retrofit kits is a long lasting and money-saving solution that retrofit traditional 1x4, 2x2, 2x4 light fixtures.Kits offer high efficiency 140-150lm/w, Eco-Friendly, and simple magnetic installation.
Applications including offices, lobbies, hallways and conference rooms in schools municipalities, libraries, airport, healthcare facilities and so on.
Dimmable magnetic led light strip features:
1. Input at AC100-277V.
2. 150lm/w without cover or 140lm/w with cover.
3. External driver from 9w to 72w.
4. Dimming optional.
5. Magnet adhesive, and installation hole on both end.

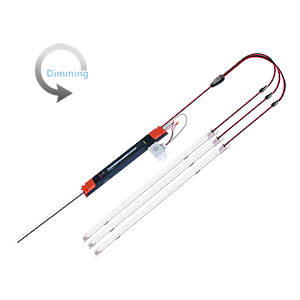

Structures of Magnetic led light strip
Specification of Magnetic led light strip fluorescent to led retrofit kits
| 1 strips for troffer | 2 strips for troffer | 3 strips for troffer | 4strips for troffer |
| Power | 8W
| 16W | 24W | 32W
|
| Model | ARK/DT/16K**D106(13D) | ARK/DT/16K**D206(13D) | ARK/DT/24K**D306(13D) | ARK/DT/32K**D406(13D) |
| Luminous Flux | 140LM | 140LM | 140LM | 140LM |
Power
| 12W | 24W | 36W | 48W |
| Model | ARK/DT/12K**D112(13D) | ARK/DT/24K**D212(13D) | ARK/DT/36K**D312(13D) | ARK/DT/48K**D412(13D) |
| Luminous Flux | 140LM | 140LM | 140LM | 140LM |
| Power | 18W | 36W | 54W | 72W |
| Model | ARK/DT/18K**D112(13D) | ARK/DT/36K**D212(13D) | ARK/DT/54K**D312(13D) | ARK/DT/72K**D412(13D) |
| Luminous Flux | 140LM | 140LM | 140LM | 140LM |
| DLC certification | Y
| Y | Y | Y |
| Dimension | 2ft: 22" | 4ft: 46" |
| Light Source | SMD2835 LED |
| Luminous Efficacy | >140lm/w |
| Operation Temp | -40 to +45℃ |
| CRI | 80 |
| Life Span | 50,000 hours at 25℃ |
| Voltage | 100-277VAC / 50-60HZ |
| Driver | UL listed power supply |
| Emergency Module | Available |
| Dimming | 0-10V |
| Sensor | Daylight sensor Microwave motion available 2 & 1 |
| Beam Angle | 120° |
| PF | >0.95 |
| Warranty | 5 Years |
Wireless Bluetooth Remote Control Switch
Fluorescent to led retrofit kits bluetooth APP Switch
· Wireless bluetooth mesh connection.
· No gate, password, internet or cloud connection needed.
· Area/Group control, group linkage.
· Visualized map, by using blueprint or photo to install or control light.
· Real-time energy-saving calculation.
· Auto emergency battery test.
Bluetooth mesh wireless app & remote control
Bluetooth APP Control
Support iOS, Android phones.
Easily add and manage lamps and smart switches.
* Use APP to group lamps.
* Set lighting scenes.
* Manage timer tasks.
* Configure delay time of human motion sensor.
* Configure group linkage control.
* Manage lamps of different areas in one smartphone.
* Share control privilege among smartphones
* Assign different privileges to staff to manage lamps.
* Compatible with most Android phones
Fluorescent to led retrofit kits bluetooth Panel Switch
Powered by two AAA batteries.
Bluetooth communication.
No wires needed. Easy installation: suitable for surface-mounted or recessed in the wall. Or just leave it on the desk.
When the voltage less than 2.6V, press any buttons and the red light flashes.
Industries We Serve
The intelligent energy-efficient lighting control system
