T8 nano led tube wiring diagram

a, work with electronic ballast, no need rewiring.

b, If the ballast is broken, can rewiring AC100-277V connect directly.

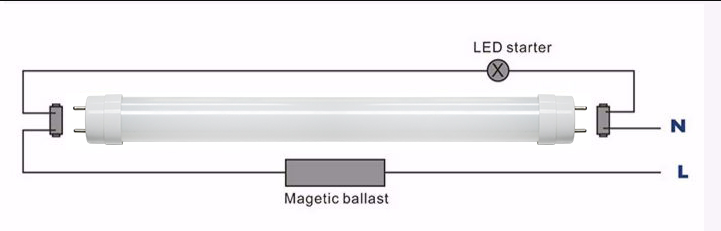

Method A： Work with magnetic ballast

Connect with Magnetic ballast:

1. Turn off the power.

2. Remove the fluorescent tube.

3. Install ARK led tube in one end.

4. Turn on the light.

If the ballast is broken, rewiring AC96-265V connect directly.

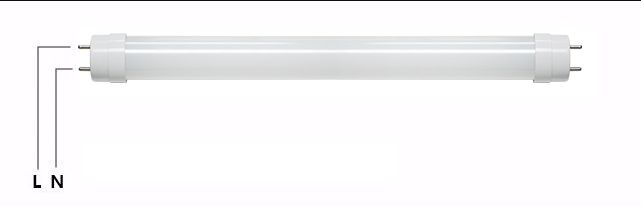

Method B：AC100-277V Connect Directly:

1. Turn off the power.

2. Take out the ballast and starter, rewiring.

3.AC 100-277V connect directly.

4. Turn on the light.
