High lumen output, high quality led tube, up to 160lm/w & 180lm/w.
PC cover with D shape aluminum heat sink inside, double insulation, total 0 risk for electric shock.
Product description:
Can fit in water proof fixture, flicker free and VDE certified.
input voltage: AC100-240V
material: ALL PC outside + Aluminum inside
correlated color temperature: 3000K-6000K
certification：VDE
Advantages:
1,can work well with single tube with Magnetic ballast.
2,AC Power 220-240 V directly.
3,Specialized PC cover design for optimal light distribution and smooth visual effect.
4,Highly energy efficiency, meet the requirement of ERP and DLC.
5,Colorful end cap for optional.
6,High-tech optical design.
7,VDE certification.
When working with magnetic ballast, please ask for LED Starter
with high brightness LED, lower power consumption, same lumen output, it’s more
energy saving, and long life span.
Features:

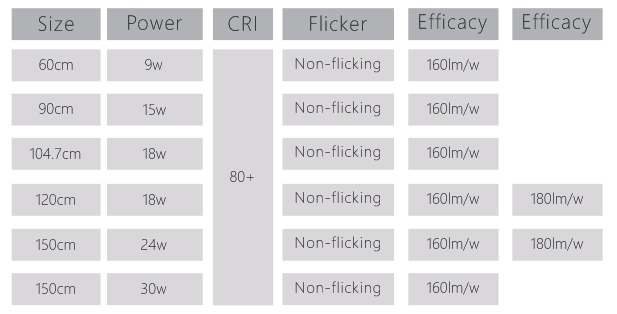

size
photometric
install

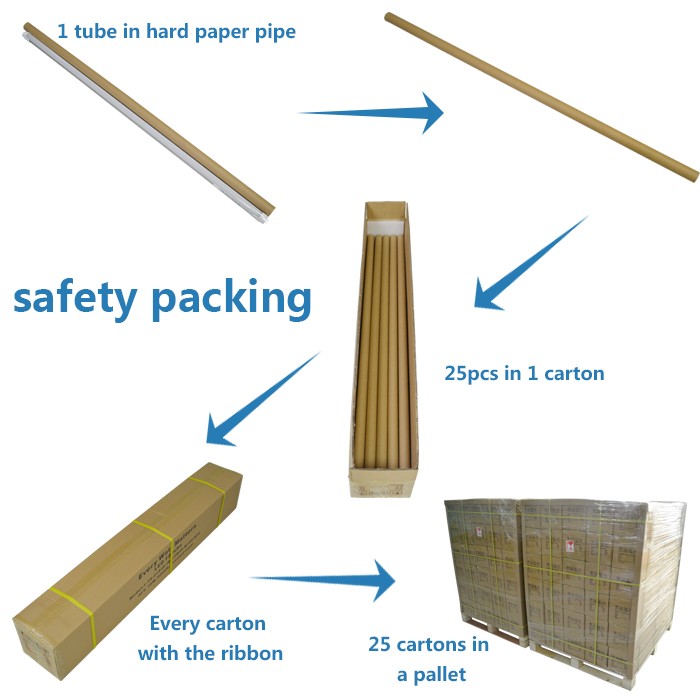

package
video
Installation instructions:
Method A： Work with magnetic ballast
Connect with Magnetic ballast:
1.Turn off the power
2.Remove the fluorescent tube
3.Install ARK led tube in one end
4.Turn on the light
If ballast broken, can rewiring AC96-265V connect directly
Method B：AC220-240V Connect Directly:
1.Turn off the power
2.Take out the ballast and starter,rewiring
3.AC 96-265V connect directly
4.Turn on the light.
Interested in our products, just feel free to contact us!
